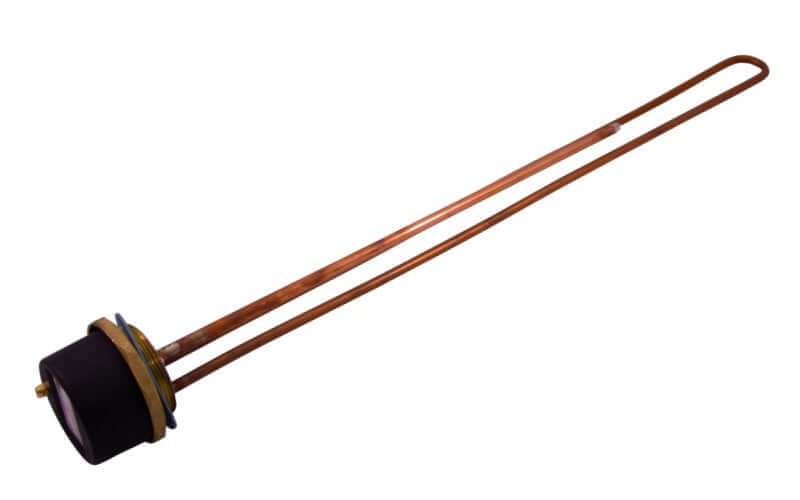

36" 3kW 2 ¼ BSP Copper Immersion Heater C36BTS

SKU C36BTS
£35.09 GBP
£35.09 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Example of applications

Standard Domestic Water Areas

Technical Spec

Number of Elements 1
Material Copper
Length (in) 36"
BSP 2 ¼
Voltage (V) 240
Phase Connection 1
Loading (kW) 3kW

Product Information

Key features

- For use in water, in domestic applications
- Single thermostat pocket

Technical data

- Material: Copper
- Loading: 3kW
- Element diameter: 8mm
- Head size (BSP): 2 ¼"
- Temperature range: Preset temp. 60°C
- Voltage: 240V 1-Phase
- Supplied with thermostat

This is a 3kW, 36inch Copper Immersion Heater complete with operating rod thermostat (SS18) and separate safety manual reset cut-out. Installed products will carry the Shel-Nibe brand which is part of the Nibe group to which both Shel and Heatrod both belong. The C36BTS can be used in most standard domestic water areas. We would recommend our Incoloy immersion heaters for normal use in hard water areas susceptible to limescale. If particularly aggressive water conditions are present or the duty/usage is higher than normal then we would recommend a titanium element version which can be priced and manufactured on request.

This immersion heater is most commonly fitted with Shel SS18 thermostat.
See our “Thermostats” section for more details and to purchase these products.
