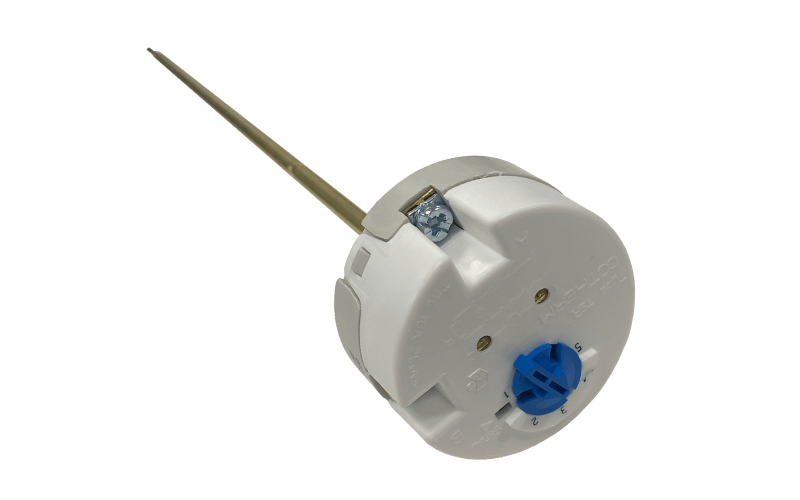

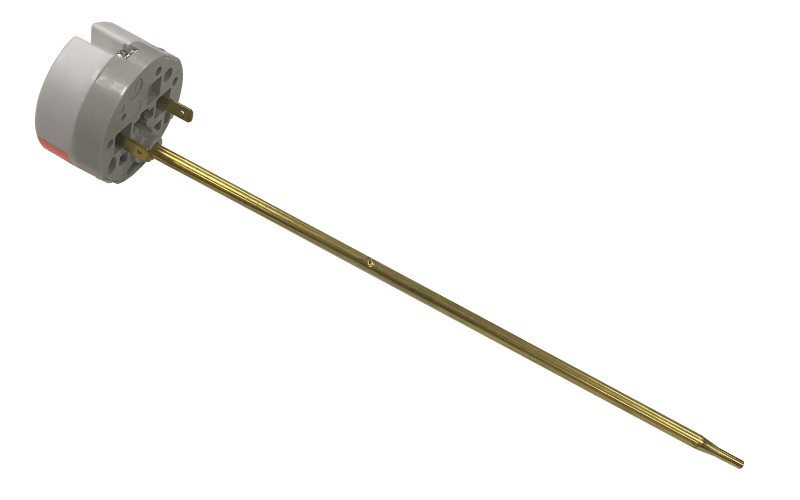

Cotherm TSR00014 Dual Function Thermostat

SKU ST-260
£42.14 GBP
£42.14 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Technical Spec

Length (in) 11"
Cutout temperature 85°C
Maximum temperature 70°C

Product Information

Technical data

- 11" length
- preset temp: 70°C Max Op Trip, 85°C Safety
- single pole
- dual function

Dual Function Rod / Stem Thermostat with adjustable trip and safety cut-out. Functional switching is achieved via single pole stem control and safety cut-off is via a memory spring located in the invar or stem. This allows the safety cut out to sense the temperature immersed within the water tank for more effective switching. The Cotherm TSR00014 thermostat is CE marked and approved to EN 60730.

Typically installed in water heaters within Fabdec Excelsior, Glow Worm Hydracyl, Vaillant Aurostor / Aurotherm and Unistor water cylinders / tanks.
