16" 3kW 1 ½ BSP Incoloy Immersion Heater DESTB340

NO STOCK - Available on backorder - dispatched in 2 weeks, if 3 or more units - 4 weeks
SKU DESTB 340
Regular price £55.56 GBP
Regular price Sale price £55.56 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Example of applications

Standard Domestic Water Areas

Technical Spec

Number of Elements 1
Material Incoloy
Length (in) 16"
BSP 1 ½
Voltage (V) 240
Phase Connection 1
Loading (kW) 3kW

Product Information

Key features

- For use in water, in domestic applications
- Single thermostat pocket
- Large range of thermostats available
- product approved by NEMKO – certificate available on request

Technical data

- Material: Incoloy 800
- Loading: 3kW
- Element diameter: 8mm
- Head size (BSP): 1 ½"
- Temperature range: 70°C Max Op Trip, 80°C Safety (depends on fitted thermostat)
- Voltage: 240V 1-Phase
- Supplied with thermostat

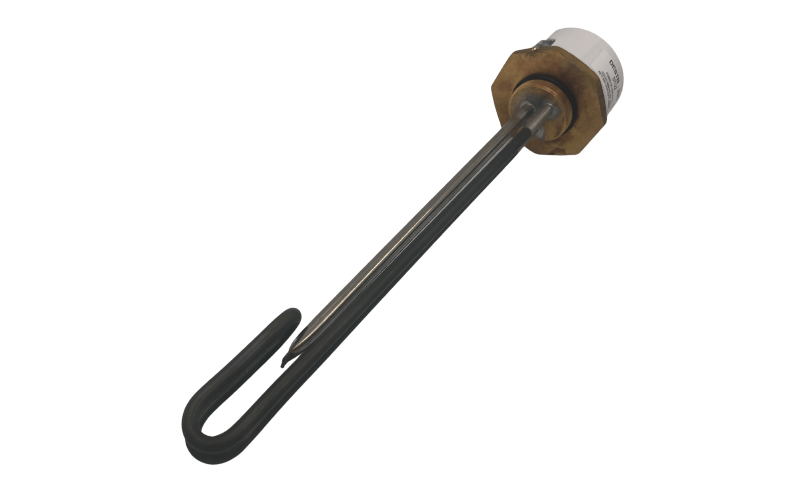

This is a 3kw, 16inch immersed length DESTB340 Incoloy Immersion Heater complete with combined (operating & safety cut-out) plug-in thermostat and is typically used within standard unvented domestic water cylinders. The element is bonded to the brass flange with an environmentally friendly, WRAS approved, epoxy bond, making for more robust hydraulic and corrosion proof performance.

Installed products will often carry the ThermTec brand which is owned and manufactured exclusively by Heatrod Elements in Manchester. The DESTB335 can be used in all standard domestic water areas including normal use in hard water areas susceptible to limescale. If particularly aggressive water conditions are present or the duty/usage is higher than normal then we would recommend an equivalent product with titanium element which is the BESZB340.

This immersion heater is most commonly fitted with Diamond-H WTS, Cotherm TSE00187, TSR00014 and Thermowatt RTS-3 dual function thermostats
See our "Thermostats" section for more details and to purchase these products.

The DESTB335 is designed to meet European Standards EN 60335-2-73:2003 +A1:06 + A2:09 used with EN 60335-1:2012 for the safety of electrical appliances that heat liquids for household and similar purposes. Testing has been carried out and the product approved by NEMKO - certificate available on request
