HE1 eCOHeat

SKU HE111A
Regular price £66.66 GBP
Regular price Sale price £66.66 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Model
Low Power Immersion Heater

Example of applications

Standard Domestic Water Areas

Technical Spec

Number of Elements 1
Material Incoloy
Voltage (V) 240
Phase Connection 1
Loading (kW) 1kW

Product Information

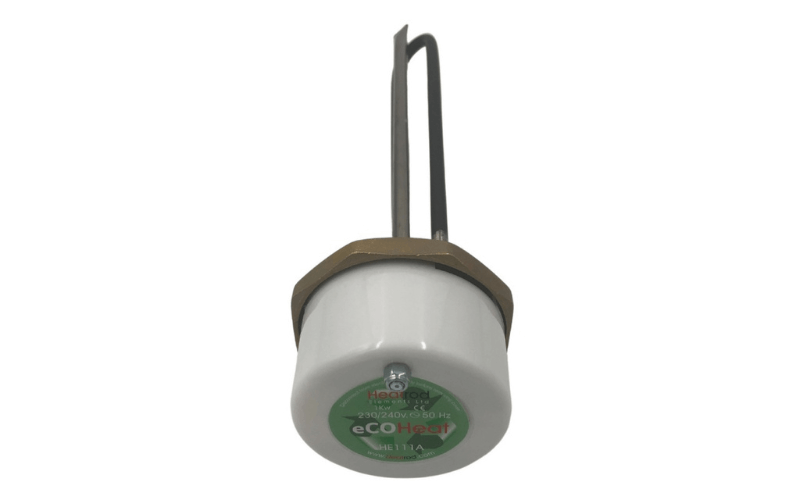

1kW 11", 14", 27" Low Power Immersion Heater

Key features

– For use in water, in domestic applications
– Single thermostat pocket

Technical data

– Material: Incoloy 800
– Loading: 1kW
– Element diameter: 8mm
– Temperature range: 70°C Max Op Trip, 80°C Safety
– Voltage: 240V 1-Phase
– Supplied with thermostat



This is a 1kW, 11″, 14″, 27″ immersed length Incoloy Immersion Heater complete with combined (operating & safety cut-out) plug-in thermostat and can be used within both vented and unvented hot water cylinders. This product is aimed at a low load applications where limited energy is available such as renewable applications in conjunction with Solar panels, Ground Source and Air Source heat pumping and in Marine applications such as such as Calorifiers. The eCOHeat can be used in all standard domestic water areas including normal use in hard water areas susceptible to limescale. If particularly aggressive water conditions are present or the duty/usage is higher than normal then we would recommend a low watts density or a titanium element version which can be priced and manufactured on request.

The Cotherm TSE00187 dual function thermostat is supplied with this immersion heater – see our “Thermostats” section for more details and to purchase these products as spares items.

Available Options:

 Item Number

Thread Size (BSP)

Immersed

Length (in)

Immersed

Length (mm)

HE111A 2 ¼ 11 280
HE111B 2 11 280
HE111C 1 ¾ 11 280
HE114A 2 ¼ 14 355
HE114B 2 14 355
HE114C 1 ¾ 14 355
HE127A 2 ¼ 27 685
HE127B 2 27 685
HE127C 1 ¾ 27 685
HE1.514A 2 ¼ 14 355



How to Measure the BSP Thread size of your Immersion Heater:
